Finish Thompson

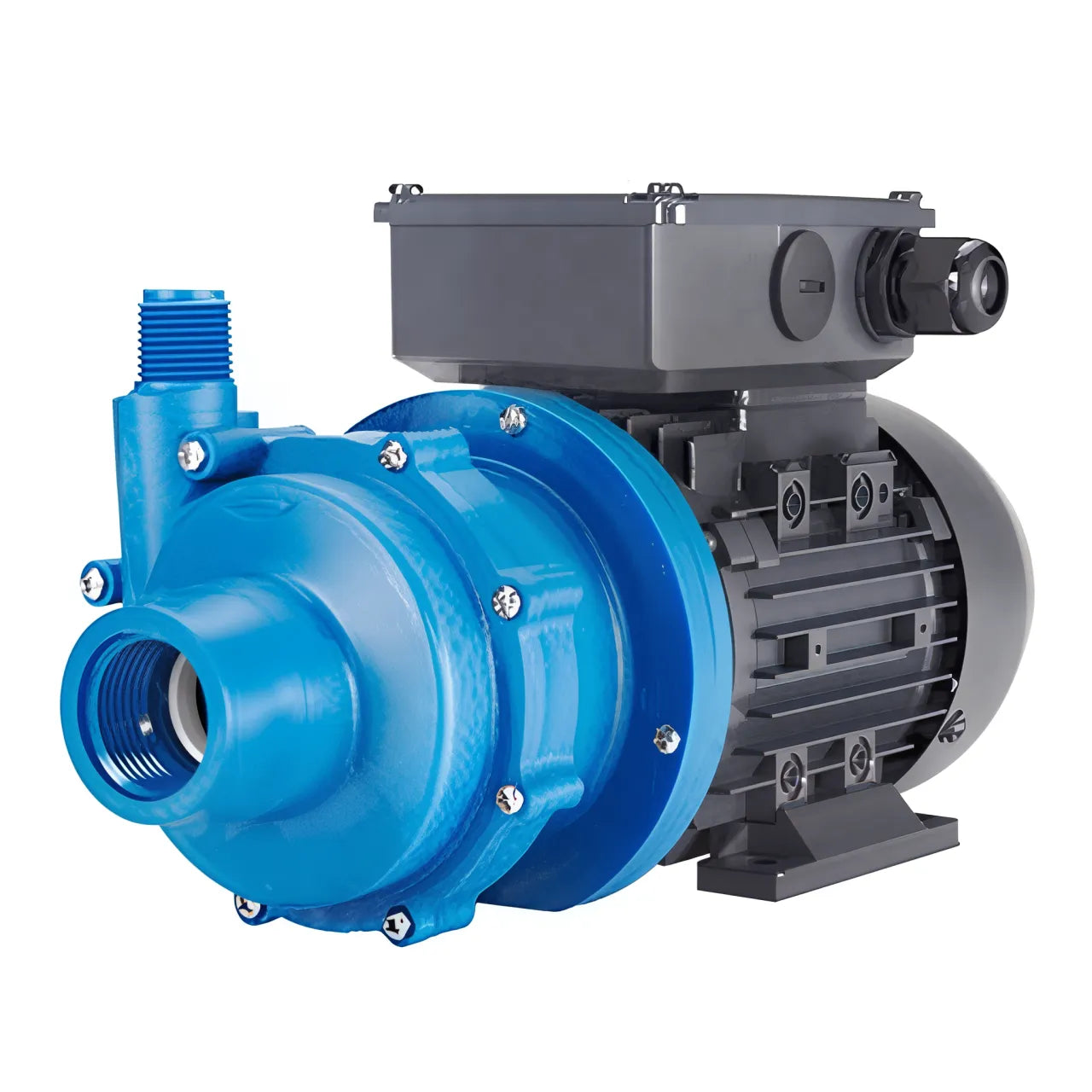

DB3, 4, 5 Base Model

1 1

Finish Thompson

DB3, 4, 5 Base Model

DB3, 4, 5 Base Model

$663.00 USD
$663.00 USD
Sale Sold out
DB3P
  • SKU: DB3P-64-M615
  • Maximum Flow (GPM): 15 GPM
  • Power Range*: 1/4 HP, 230 Volt, 50/60 Hz
  • Magnet: 6
  • Pump Size: 1 x 1/2 NPT
  • Wetted Material: Polypropylene
  • Maximum Head: 20 Feet
  • Impeller Size: 2.3
  • Motor: M615, TEFC - Totally Enclosed Fan Cooled, 1 Ph (Single Phase)
  • Maximum Temperature: 105 F° / 40.56 °C
  • Bushing Materials: Carbon
  • O-Ring Materials: FKM
  • Connection Types: NPT

* Power Range Based on 1.0 specific gravity

Documentation:
DB-SP-MSDB-SERIES-BROCHURE
DB_SERIES_dimensional
DB3-4-5
DB_Series_Manual
DB_Series_Curves
DB-SP-MSDB-SERIES-BROCHURE
View full details
